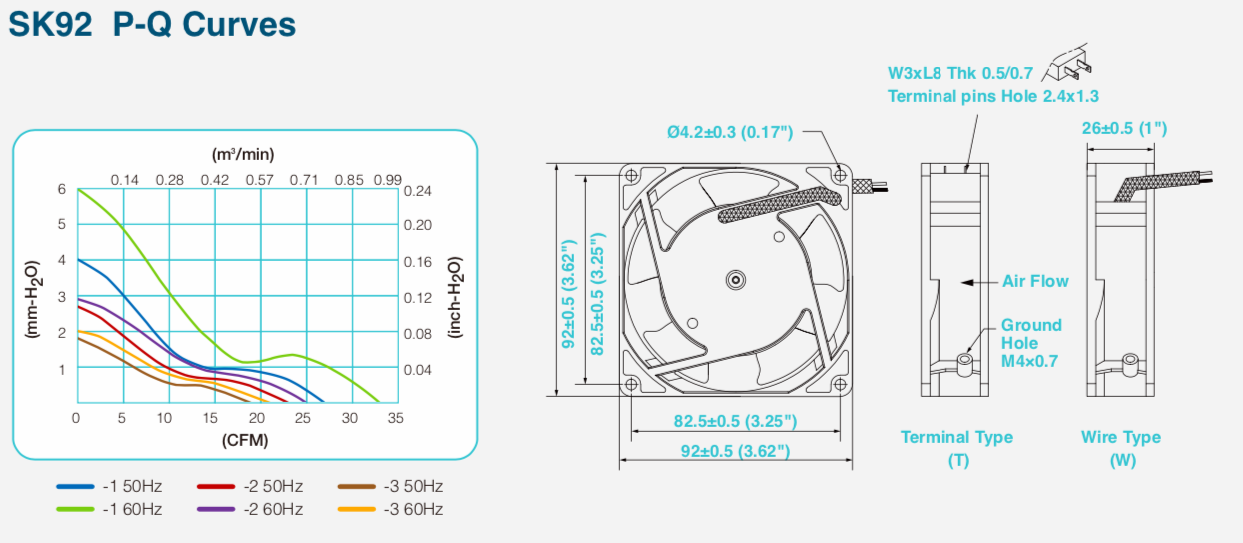

SK92 (92X92X25mm)
| 馬達： | Shaded pole, impedance protected |
| 外殼： | Die-cast aluminum, Painted black (AP) |
| 風葉： | PBT thermoplastic + glass fiber, UL 94V-0 |
| 軸承： | Two-ball or sleeve available |
| 接電方式： | T-Terminal push-on type or W-Lead wire type |
| 耐壓： | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍： |
Ball bearing -20℃~+70℃ Sleeve bearing -10℃~+55℃ |
| 壽命： |
Ball bearing 60,000 hours at 40℃ Sleeve bearing 30,000 hours at 40℃ |
| 淨重： | 290gm(0.64 pound) |
| 認證： | UL, CUL, TUV, CE, RoHS |
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| m3/min | CFM | mm-H2O | inch-H2O | |||||||
| SK92AP-11-1 |
110 (100V~120V) |
50/60 | 0.18/0.16 | 15/13 | 2400/3000 | 0.79/0.93 | 27/33 | 4.0/6.0 | 0.16/0.24 | 31/39 |
| SK92AP-11-2 |
110 (100V~120V) |
50/60 | 0.09/0.08 | 10/9 | 2100/2300 | 0.65/0.71 | 23/25 | 2.7/2.9 | 0.11/0.11 | 28/31 |
| SK92AP-11-3 |
110 (100V~120V) |
50/60 | 0.07/0.06 | 7/6 | 1700/1750 | 0.53/0.59 | 19/21 | 1.8 /2.0 | 0.07/0.08 | 26/26 |
| SK92AP-22-1 |
220 (200V~240V) |
50/60 | 0.08/0.07 | 15/13 | 2400/2900 | 0.76/0.93 | 27/33 | 4.0/6.0 | 0.16/0.24 | 31/38 |
| SK92AP-22-2 |
220 (200V~240V) |
50/60 | 0.06/0.05 | 10/9 | 2100/2350 | 0.65/0.71 | 23/25 | 2.7/2.9 | 0.11/0.11 | 28/32 |
| SK92AP-22-3 |
220 (200V~240V) |
50/60 | 0.05/0.04 | 7/6 | 1650/1850 | 0.53/0.59 | 19/21 | 1.8 /2.0 | 0.07/0.08 | 23/27 |
