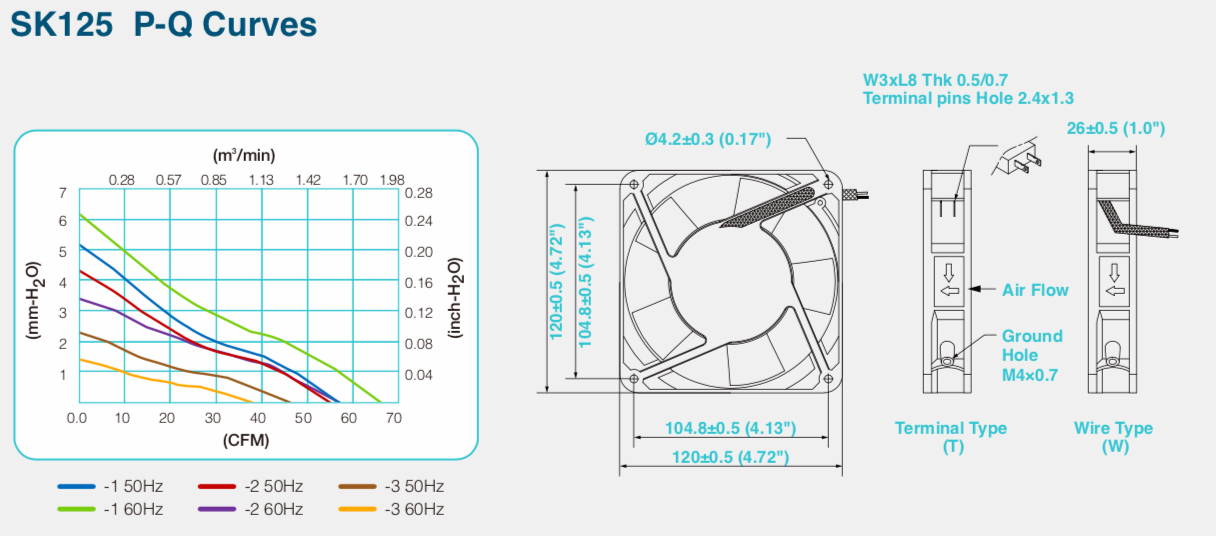

SK125 (120X120X25mm)
| 馬達： | Shaded pole, impedance protected |
| 外殼： | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| 風葉： | PBT thermoplastic + glass fiber, UL 94V-0 |
| 軸承： | Two-ball or sleeve available |
| 接電方式： | T-Terminal push-on or W-Lead wire type |
| 耐壓： | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍： |
Ball bearing -20℃~+70℃ Sleeve bearing -10℃~+55℃ |
| 壽命： |
Ball bearing 60,000 hours at 40℃ Sleeve bearing 30,000 hours at 40℃ |
| 淨重： | 390gm (0.86 pound) |
| 認證： | UL, CUL, TUV, CE, RoHS |
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| m3/min | CFM | mm-H2O | inch-H2O | |||||||
| SK125AP-11-1 |
110 (100V~120V) |
50/60 | 0.25/0.20 | 17/15 |
2550/3000 |
1.61/1.87 |
57/66 |
5.2/6.2 |
0.20/0.24 |
44/48 |
| SK125AP-11-2 |
110 (100V~120V) |
50/60 | 0.09/0.08 | 12/10 |
2400/2600 |
1.56/1.61 |
55/57 |
4.3/3.4 |
0.17/0.13 |
42/45 |
| SK125AP-11-3 |
110 (100V~120V) |
50/60 | 0.06/0.05 | 8/6 |
2100/1900 |
1.30/1.08 |
46/38 |
2.3/1.4 |
0.09/0.06 |
39/35 |
| SK125AP-22-1 |
220 (200V~230V) |
50/60 | 0.09/0.07 | 17/15 |
2550/3000 |
1.61/1.87 |
57/66 |
5.2/6.2 |
0.20/0.24 |
44/48 |
| SK125AP-22-2 |
220 (200V~230V) |
50/60 | 0.06/0.05 | 12/10 |
2400/2600 |
1.56/1.61 |
55/57 |
4.3/3.4 |
0.17/0.13 |
42/45 |
| SK125AP-22-3 |
220 (200V~230V) |
50/60 | 0.05/0.04 | 8/6 |
2000/1750 |
1.30/1.08 |
46/38 |
2.3/1.4 |
0.09/0.06 |
36/31 |
