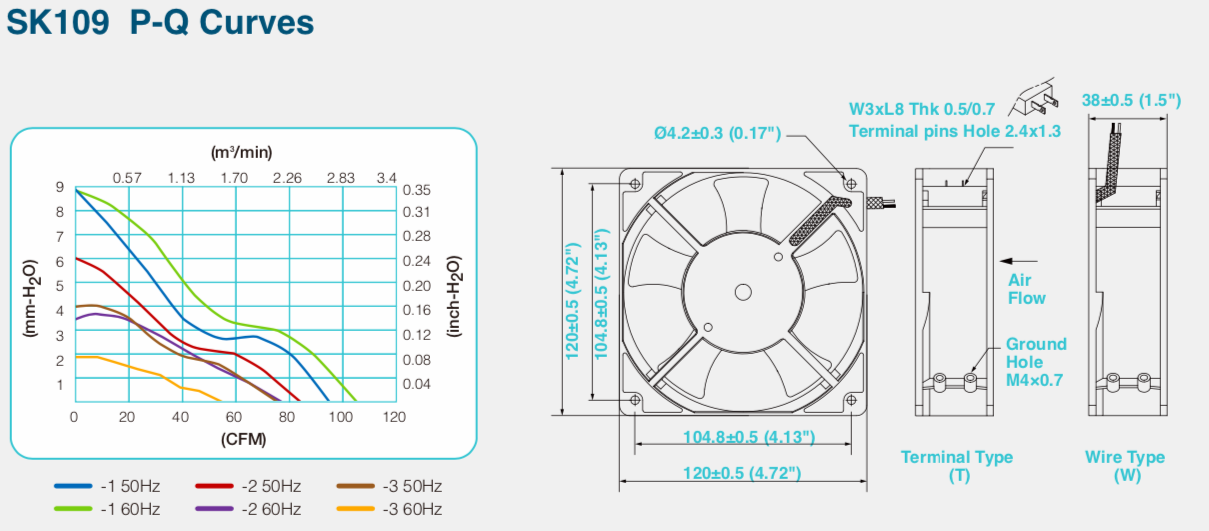

SK109 (120X120X38mm)
| 馬達： | Shaded pole, impedance protected |
| 外殼： | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| 風葉： | PBT thermoplastic + glass fiber, UL 94V-0 |
| 軸承： | Two-ball or sleeve available |
| 接電方式： | T-Terminal push-on type or W-Lead wire type |
| 耐壓： | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍： |
Ball bearing -20℃~+70℃ Sleeve bearing -10℃~+55℃ |
| 壽命： |
Ball bearing 60,000 hours at 40℃ Sleeve bearing 30,000 hours at 40℃ |
| 淨重： | 550gm (1.2 pounds) |
| 認證： | UL, CUL, TUV, CE, RoHS |
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| m3/min | CFM | mm-H2O | inch-H2O | |||||||
| SK109AP-11-1 |
110 (100V~120V) |
50/60 | 0.25/0.21 | 17/15 | 2650/3000 | 2.6/2.9 | 95/105 | 8.9/8.9 | 0.35/0.35 | 45/49 |
| SK109AP-11-2 |
110 (100V~120V) |
50/60 | 0.14/0.13 | 12/11 | 2500/2400 | 2.3/2.2 | 84/77 | 6.0/3.5 | 0.24/0.14 | 43/45 |
| SK109AP-11-3 |
110 (100V~120V) |
50/60 | 0.10/0.10 | 9/8 | 2300/1800 | 2.2/1.6 | 76/55 | 4.0/1.9 | 0.16/0.07 | 41/32 |
| SK109AP-22-1 |
220 (200V~230V) |
50/60 | 0.12/0.10 | 17/15 | 2650/3000 | 2.6/2.9 | 95/105 | 8.9/8.9 | 0.35/0.35 | 45/49 |
| SK109AP-22-2 |
220 (200V~230V) |
50/60 | 0.07/0.06 | 12/11 | 2500/2400 | 2.3/2.2 | 84/77 | 6.6/3.5 | 0.24/0.14 | 43/41 |
| SK109AP-22-3 |
220 (200V~230V) |
50 | 0.06 | 9 | 2050 | 2.2 | 76 | 4.0 | 0.16 | 36 |
