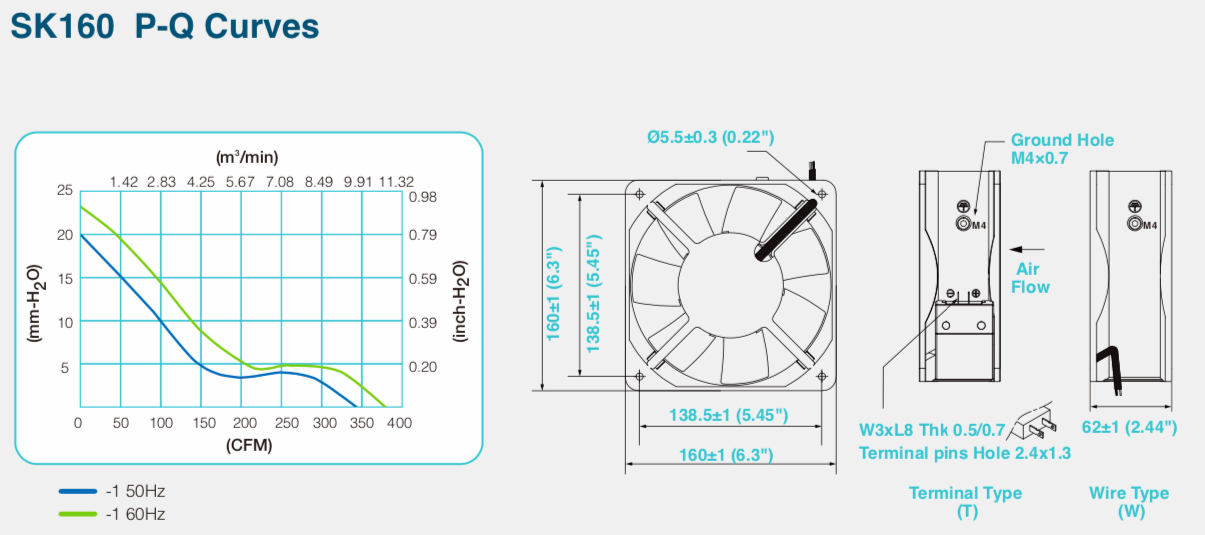

SK160

馬達: Single phase induction capacitor motor, thermally protected
外殼: Die-cast aluminum, Painted black (AP) or Plated (AN)
風葉: Glass reinforced thermoplastic, UL 94V-0
軸承: Two-ball bearing
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Recommended ambient range -20℃~+70℃
壽命: 60,000 hours at 25℃
40,000 hours at 65℃
淨重: 1.4 kg (3.09 pounds)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK160AP-11-1 110
(100V~120V)
50/60 0.49/0.49 48/55 2800/3100 8.9/10 315/356 18.4/22.5 0.72/0.89 60/64
SK160AP-22-1 220
(200V~240V)
50/60 0.25/0.25 48/55 2800/3100 8.9/10 315/356 18.4/22.5 0.72/0.89 60/64
