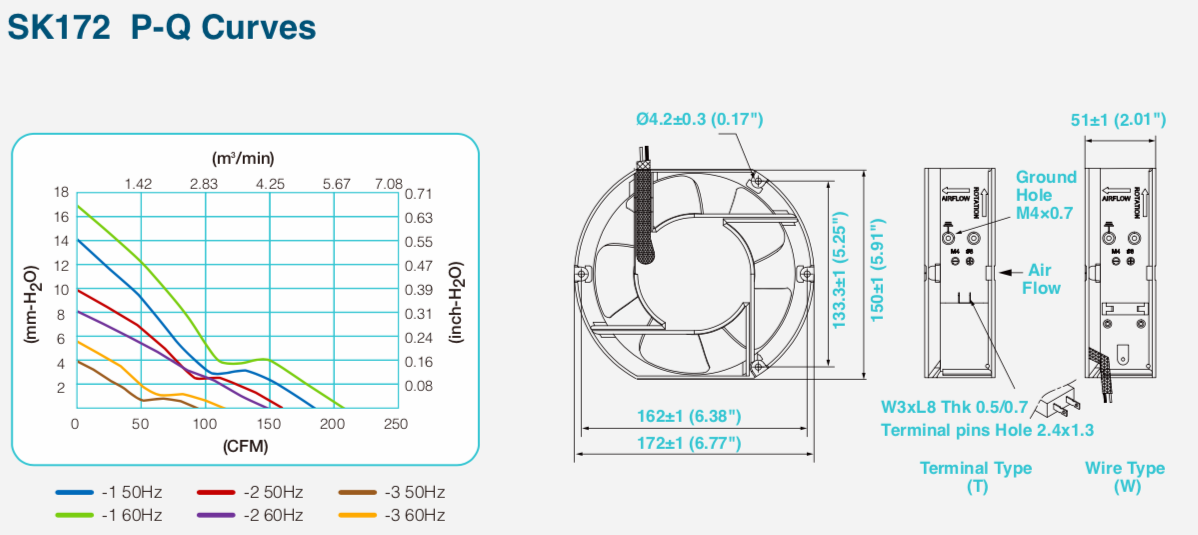

SK172 (172X150X51mm)
| 馬達： | Single phase induction capacitor motor, thermally protected or impedance protected |
| 外殼： | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| 風葉： | PBT thermoplastic + glass fiber, UL 94V-0 |
| 軸承： | Two-ball bearing |
| 接電方式： | T-Terminal push-on type or W-Lead wire type |
| 耐壓： | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍： | Ambient -20℃~+80℃ |
| 壽命： |
60,000 hours at 40℃ |
| 淨重： | 1,050gm (2.31 pounds) |
| 認證： | UL, CUL, TUV, CE, RoHS |
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| m3/min | CFM | mm-H2O | inch-H2O | |||||||
| SK172AP-11-1 |
110 (100V~120V) |
50/60 | 0.24/0.25 | 24/28 |
2800/3200 |
5.2/5.9 |
185/208 |
14.2/17.0 |
0.56/0.67 |
56/60 |
| SK172AP-11-2 |
110 (100V~120V) |
50/60 | 0.17/0.21 | 20/23 |
2550/2400 |
4.6/4.2 |
161/149 |
9.8/8.0 |
0.39/0.31 |
53/50 |
| SK172AP-11-3 |
110 (100V~120V) |
50/60 | 0.16/0.20 | 16/18 |
1450/1750 |
2.6/3.3 |
94/116 |
3.9/5.6 |
0.15/0.22 |
36/42 |
| SK172AP-22-1 |
220 (200V~240V) |
50/60 | 0.12/0.16 | 24/28 |
2800/3200 |
5.2/5.9 |
185/208 |
14.2/17.0 |
0.56/0.67 |
56/60 |
| SK172AP-22-2 |
220 (200V~240V) |
50/60 | 0.10/0.12 | 20/23 |
2550/2300 |
4.6/4.2 |
161/149 |
9.8/8.0 |
0.39/0.31 |
53/50 |
| SK172AP-22-3 |
220 (200V~240V) |
50/60 | 0.09/0.16 | 16/18 |
1450/1750 |
2.6/3.3 |
94/116 |
3.9/5.6 |
0.15/0.22 |
36/42 |
