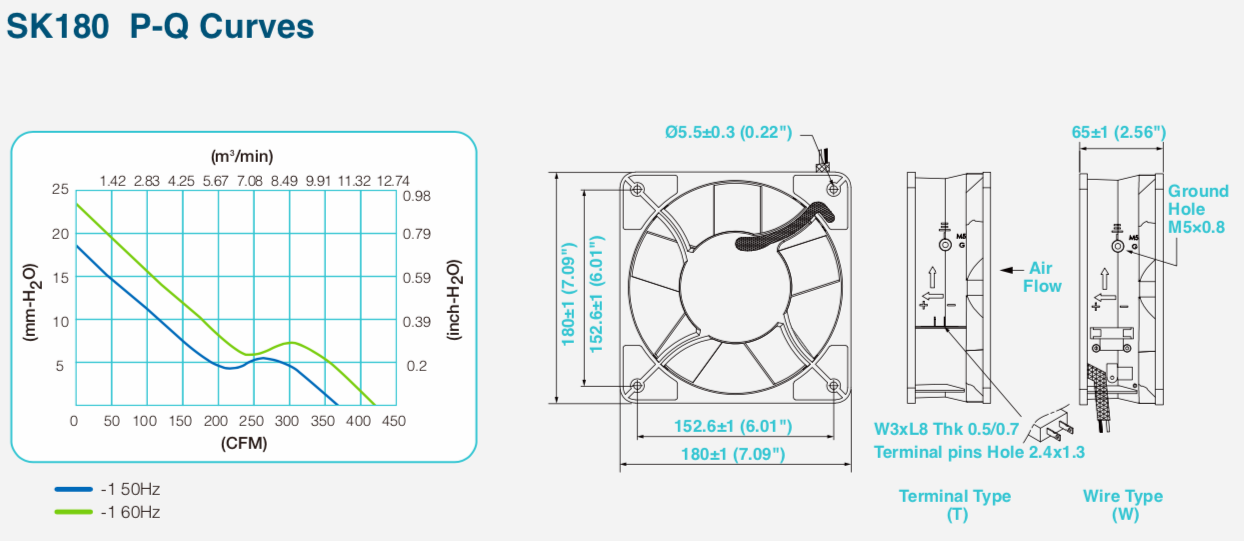

SK180

馬達: Single phase induction capacitor motor, thermally protected
外殼: Die-cast aluminum, Painted black (AP) or Plated (AN)
風葉: Glass reinforced thermoplastic, UL 94V-0
軸承: Two-ball bearing
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Recommended ambient range  -20℃~+70℃
壽命: 60,000 hours at 25℃
40,000 hours at 65℃
淨重: 1.8 kg (3.97 pounds)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK180AP-11-1 110
(100V~120V)
50/60 0.54/0.50 50/52 2800/3250 10.5/11.9 370/420 18.3/23.6 0.72/0.93 60/63
SK180AP-22-1 220
(200V~240V)
50/60 0.23/0.24 43/52 2800/3250 10.5/11.9 370/420 18.3/23.6 0.72/0.93 59/63
